Nuevo

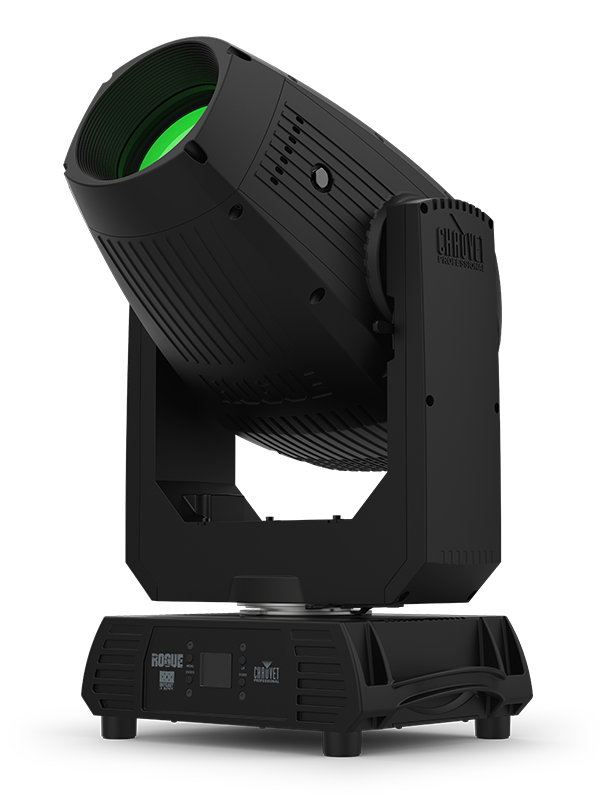

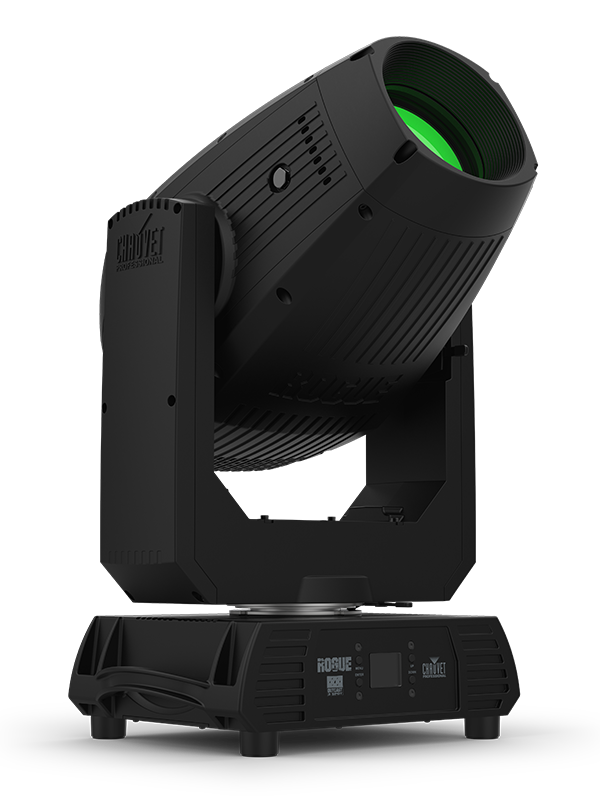

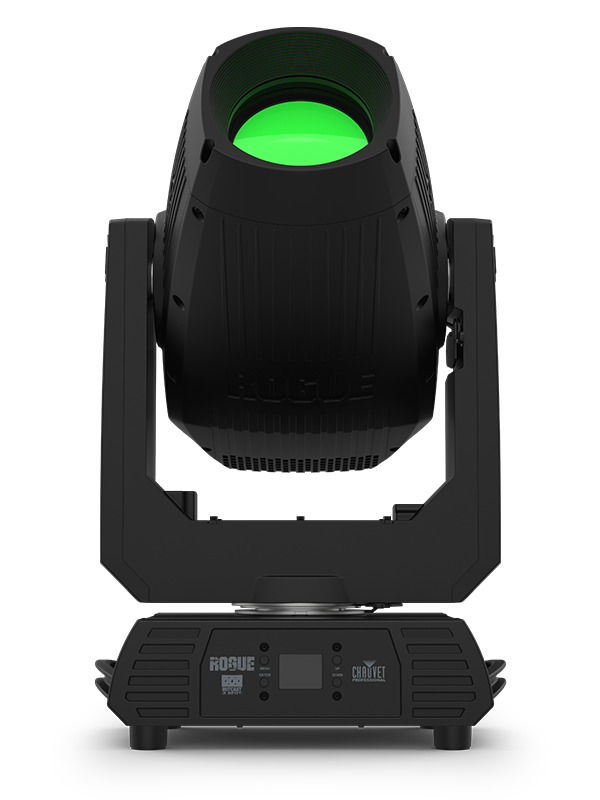

Rogue Outcast 3 Spot

El Rogue Outcast 3 Spot es un cabezal móvil LED compacto con clasificación IP65 que cuenta con tecnología de aleación ligera. Ofrece una variedad de efectos, incluyendo doble rueda de color, doble rueda de gobos para efectos dinámicos de morphing, transiciones suaves de 16 bits y un amplio rango de zoom. También incluye iris, prisma y frost. Su carcasa está diseñada para resistir elementos exteriores y es de bajo mantenimiento para instalaciones interiores, soportando partículas como humo y neblina.


Especificaciones

Óptica

  • Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7044 K
  • Front lens diameter: 119 mm
  • CRI: 70
  • Beam Angle: 4.9° to 33.7°
  • Field Angle: 5.5° to 38°
  • Cutoff Angle: 5.6° to 38.7°
  • Zoom Range: 4.9° to 38.7°
  • Lumens – Source: 20,000
  • Lumens – Output: 14,989
  • Illuminance (4.9°): 56,916 lux @ 5 m
  • Illuminance (38.7°) 2,145 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Efectos dinámicos

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Colors (1): 7 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 7 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
  • Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 20 Hz
  • Move in Black: Yes

Construcción / Características físicas

  • Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
  • Weight: 51 lb (23.2 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

Conexiones

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 20 or 25
  • Modes/Personalities: 2 personalities (20, 25)

Eléctrico

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
  • Power and Current: 510 W, 5.13 A @ 100 V, 60 Hz
  • Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz
  • Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz
  • Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
  • Power and Current: 494 W, 2.12 A @ 240 V, 50 Hz

Certificaciones / Calificaciones

  • CE, MET, UKCA
  • IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
    Noise Level (Idle): 24.2 dB(A) @ 1 m
    Noise Level (Max): 33.9 dB(A) @ 1 m
    Noise Level (Auto): 34.5 dB(A) @ 1 m
    Noise Level (Eco): 31.0 dB(A) @ 1 m
    Noise Level (Full): 46.9 dB(A) @ 1 m
  • Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
  • Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
  • Maximum Ambient Temperature (ta): 45° C / 113° F

Accesorios incluidos

  • Rogue Outcast 3 Spot
  • Seetronic Powerkon IP65 power cord
  • (2) Omega brackets with mounting hardware

Accesorios opcionales

  • Clamps
  • IP65 5 pin DMX Cables
  • IP65 PowerKon Extension cables
  • Flight Case
