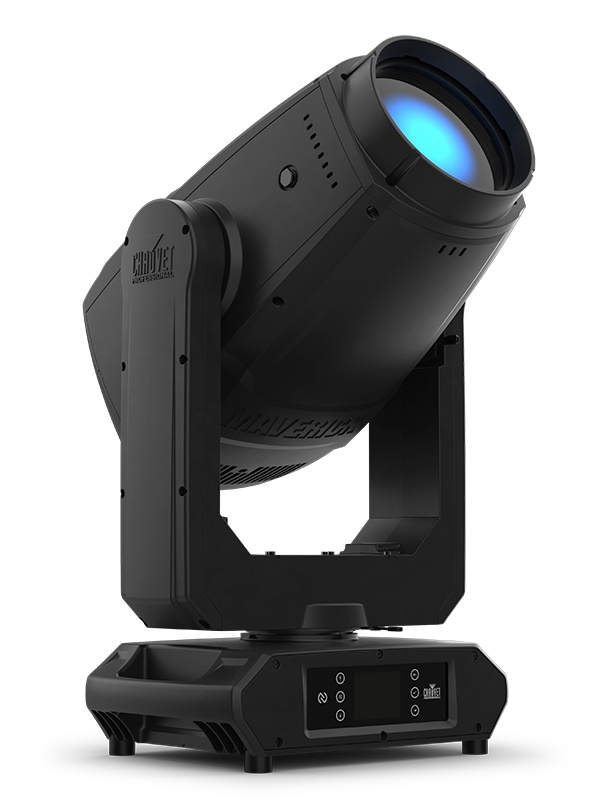

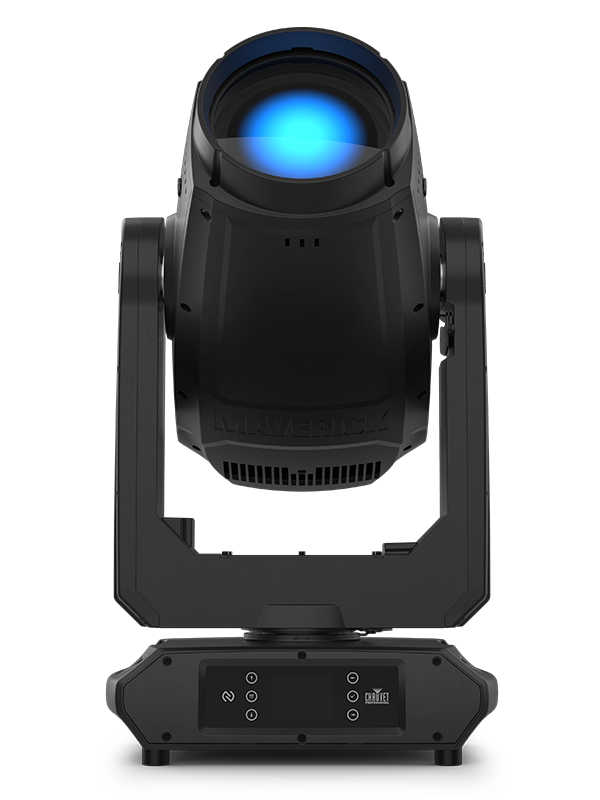

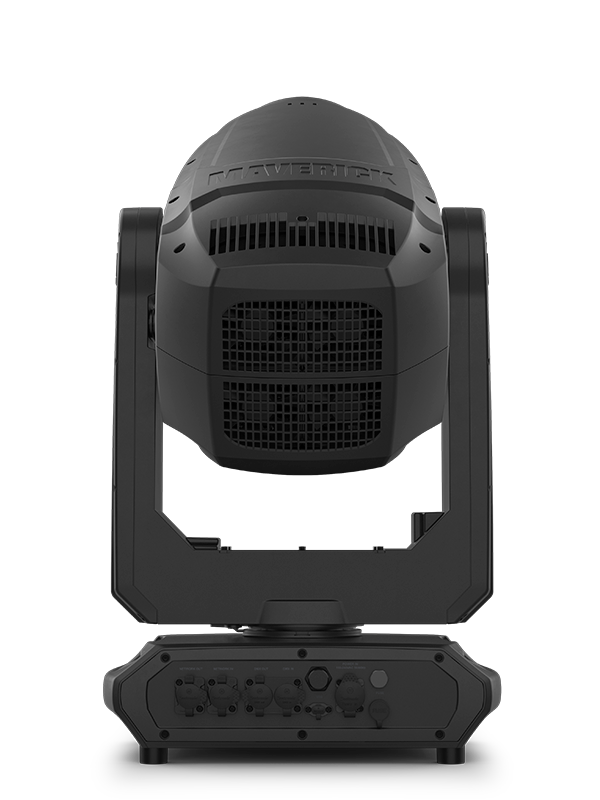

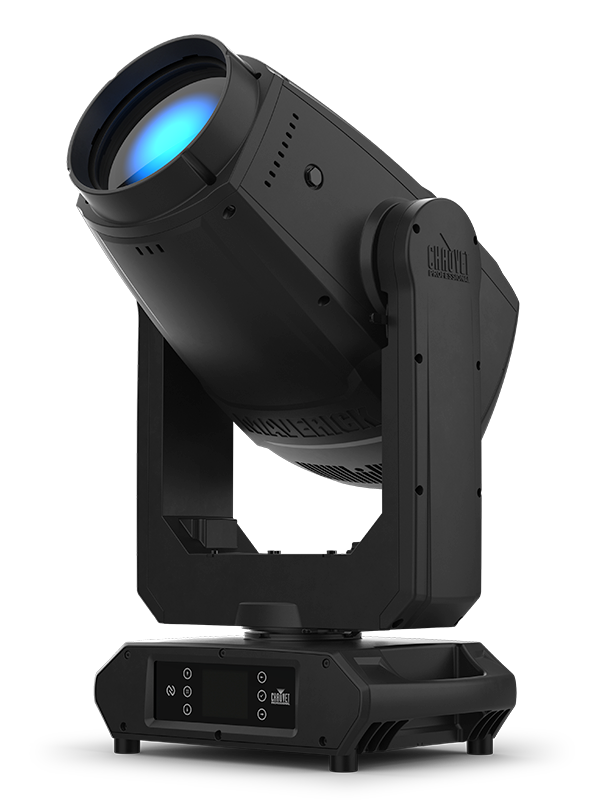

Maverick Storm 3 Profile

With an 18:1 zoom and a full armory of features, Maverick Storm 3 Profile is a compact IP65 moving profile with incredible reach. This lightweight powerhouse combines the latest Maverick series technical achievements with the durability and versatility to perform indoors and out. Harness over 30,000 lumens of output as you go from a narrow 3.4° beam to a wide 56.7° spot. Freely create with its exquisitely sharp framing shutter system and a wheelhouse that includes variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. This Maverick weathers the storm and welcomes the sunshine with SunShield technology that comes on with complete protection of all internal optical components whenever the fixture powers down


Especificaciones

Óptica

  • Light Source: 1 LEDs (CW) 620 W, (4.6 A), 7500 K, 50,000 hours life expectancy
  • Color Temperature (at full): 7062 K
  • CRI: 72.3
  • CRI with CRI Filter: 90.2
  • Front Lens Diameter: 165 mm
  • Beam Angle: 3.4° to 51.6°
  • Field Angle: 3.7° to 55.8°
  • Cutoff Angle: 3.8° to 56.7°
  • Zoom Range: 3.4° to 56.7°
  • Lumens – Output: 33,007 lm
  • Illuminance (3.4°) 168,194 lux @ 5 m
  • Illuminance (56.7°) 19,177 lux @ 5 m
  • PWM Frequency: 600Hz, 1500Hz, 2000Hz, 65,000Hz

Efectos dinámicos

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY wheel, CTO wheel
  • Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 9 + open (glass), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 25.5 mm (outside), 18 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: 4 Blades, each with dual axis movement, Full blackout.
  • Framing Shutter rotation: +/- 60° rotation.
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Animation: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4

Construcción / Características físicas

  • Dimensions: 15.27 x 10.55 x 29.21 in (388 x 268 x 742 mm)
  • Weight: 69 lb (31.3kg)
  • Exterior Color: Black
  • Housing Material: Aluminum diecast, High-impact flame-retardant polymer, Steel

Conexiones

  • Power Connection: Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP rated XLR, Seetronic IP rated RJ45 Connectors in/out
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
  • DMX Channels: 34 or 50
  • Art-Net Channels: 34 or 50
  • Modes/Personalities: 2 personalities (34, 50)

Eléctrico

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 878 W, 7.28 A @ 120 V, 60 Hz
  • Power and Current: 850 W, 4.14 A @ 208 V, 60 Hz
  • Power and Current: 841 W, 3.76 A @ 230 V, 50 Hz
  • Fuse: F15 AL, 250 V

Batería

  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 12 hours

Certificaciones / Calificaciones

  • CE, MET, FCC, CB, UKCA
  • IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Accesorios incluidos

  • Maverick Storm 3 Profile
  • Seetronic Powerkon IP65 power cord to Edison
  • Omega bracket with mounting hardware

Accesorios opcionales

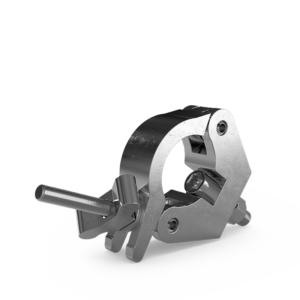

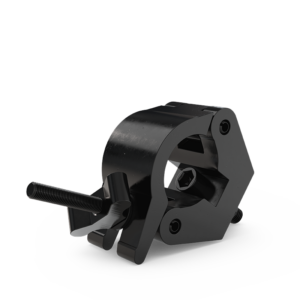

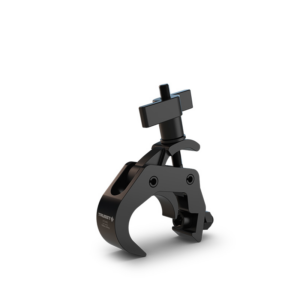

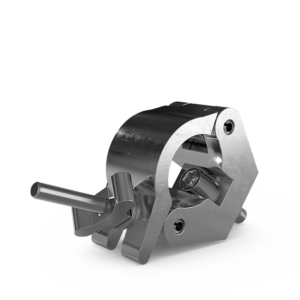

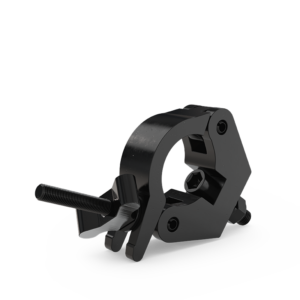

  • Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
  • RigLink powerCON cables
  • RigLink etherCON cables
  • RigLink DMX Cables
  • Flight Cases
  • CP Rack

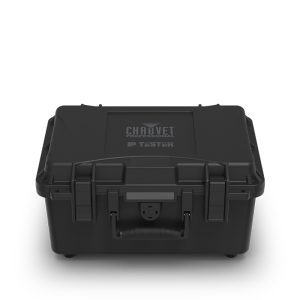

  • IP tester
