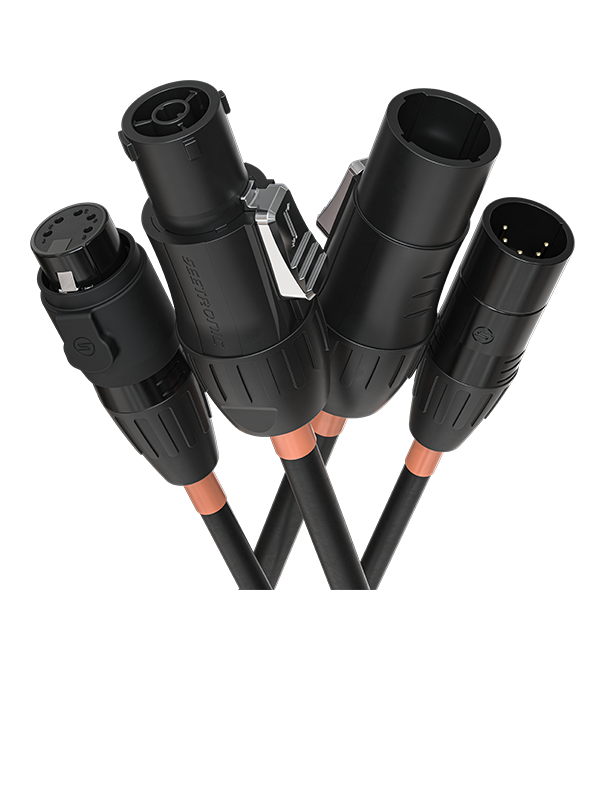

RIGLINK COMBO CABLES
IP65-rated Riglink combo power and data cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.
| Length | SKU | Description |
|---|---|---|
| 1.5FT | RIGLINKCOMBO15FT | 1.5 ft TR1 DMX Combo Cable |
| 1M | RIGLINKCOMBO1M | 1 m TR1 DMX Combo Cable |
| 5FT | RIGLINKCOMBO5FT | 5 ft TR1 DMX Combo Cable |
| 3M | RIGLINKCOMBO3M | 3 m TR1 DMX Combo Cable |
| 10FT | RIGLINKCOMBO10FT | 10 ft TR1 DMX Combo Cable |
| 5M | RIGLINKCOMBO5M | 5 m TR1 DMX Combo Cable |
| 25FT | RIGLINKCOMBO25FT | 25 ft TR1 DMX Combo Cable |
| 10M | RIGLINKCOMBO10M | 10 m TR1 DMX Combo Cable |
Riglink is CHAUVET Professional’s new line of DMX, IP65, Powerkon, 3-pin, and 4-pin cables.
Lo destacado
Power and data all through one cable.
Ideal for both installations and touring.
IP65 rated for outdoor use.
Individually insulated for minimal interference.
Riglink Cables
Color-coded connectors eliminate cable length guesswork
Certified components meet worldwide safety standards
Built rugged for live performance and life on the road
Reliable transmission and robust connection systems
Seetronic® professional production grade connectors
Cable lengths available in both meters and feet
Especificaciones
Construcción / Características físicas
- Conductor Specification: 2 x 0.34mm2 (22AWG) & 3 x 2.07mm2 (14AWG)
- Conductor Structure: OFC 19/0. 15TC & 66/0.20BC
- Insulation Material: HDPE & PVC
- Insulation OD: 1.4mm & 3.0mm
- Filler: Cotton & PPR
- Wrapping Tape: Non-woven fabric
- Sheild Structure: Tinned copper wire, 82% AL, 100% coverage
- Middle Quilt: PVC
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 16.5 ± 0.2mm
- Temperature Rating: -20oC – 70oC
- IP65
Conexiones
- Seetronic SAC3FX
- Seetronic SCWM5-B
- Seetronic SAC3MX
- Seetronic SCWF5-B
Eléctrico
- Withstand Voltage: 0.5/1.5 AC kV/min
- Conductor Resistance: 25.98 Ω/km & 7.98 Ω/km
- Capacitance between Connectors: 100pF/m
- Conductor shiels capacitance: 180pF/m
- Impedance: 110 Ω
Cable
- Metric: 1m, 3m, 5m, 10m
- Imperial: 1.5ft, 5ft, 10ft, 25ft
