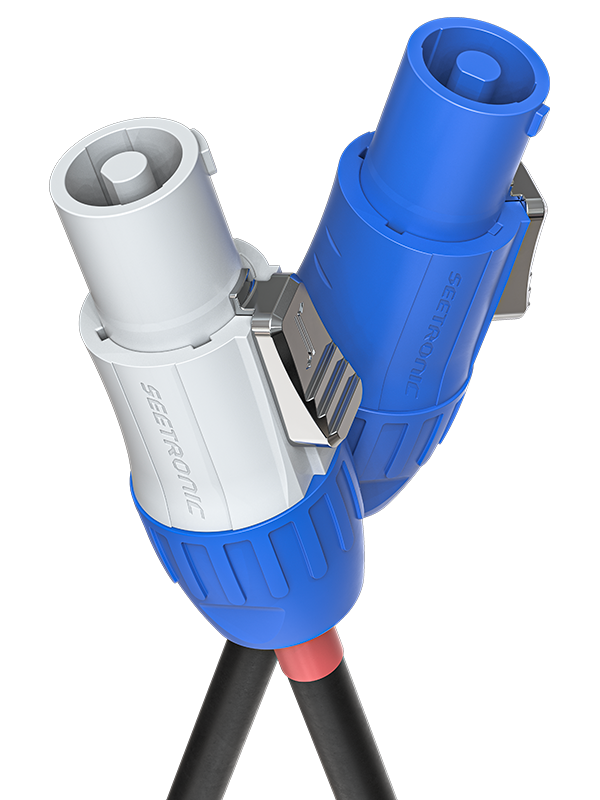

RIGLINK POWERKON CABLES
UL-certified Riglink copper-stranded power cable featuring production-grade Seetronic® connectors.
| Length | SKU | Description |
|---|---|---|
| 1.5FT | RIGLINKPOWERKON15FT | PowerKon IP20 - 1.5ft |
| 1M | RIGLINKPOWERKON1M | PowerKon IP20 - 1m |
| 5FT | RIGLINKPOWERKON5FT | PowerKon IP20 - 5ft |
| 3M | RIGLINKPOWERKON3M | PowerKon IP20 - 3m |
| 10FT | RIGLINKPOWERKON10FT | PowerKon IP20 - 10ft |
| 5M | RIGLINKPOWERKON5M | PowerKon IP20 - 5m |
| 25FT | RIGLINKPOWERKON25FT | PowerKon IP20 - 25ft |
| 10M | RIGLINKPOWERKON10M | PowerKon IP20 - 10m |
Riglink is CHAUVET Professional’s new line of DMX, IP65, Powerkon, 3-pin, and 4-pin cables.
Lo destacado
Oxygen-free copper stranded power cable.
Ideal for both installations and touring.
UL Certification.
Riglink Cables
Color-coded connectors eliminate cable length guesswork
Certified components meet worldwide safety standards
Built rugged for live performance and life on the road
Reliable transmission and robust connection systems
Seetronic® professional production grade connectors
Cable lengths available in both meters and feet
Especificaciones
Construcción / Características físicas
- Conductor Specification: 3 x 2.08mm2 (14AWG)
- Conductor Structure: OFC 41/0.25BC
- Insulation Material: PVC
- Insulation OD: 3.45mm
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 9.2 ± 0.2mm
- Temperature Rating: -20oC – 105oC
- IP20
Conexiones
- Seetronic SAC3FCA
- Seetronic SAC3FCB
Eléctrico
- Voltage Rating: 300 V/500 V
- Conductor Resistance: 7.8 Ω/km
Cable
- Imperial: 1.5ft, 5ft, 10ft, 25ft
