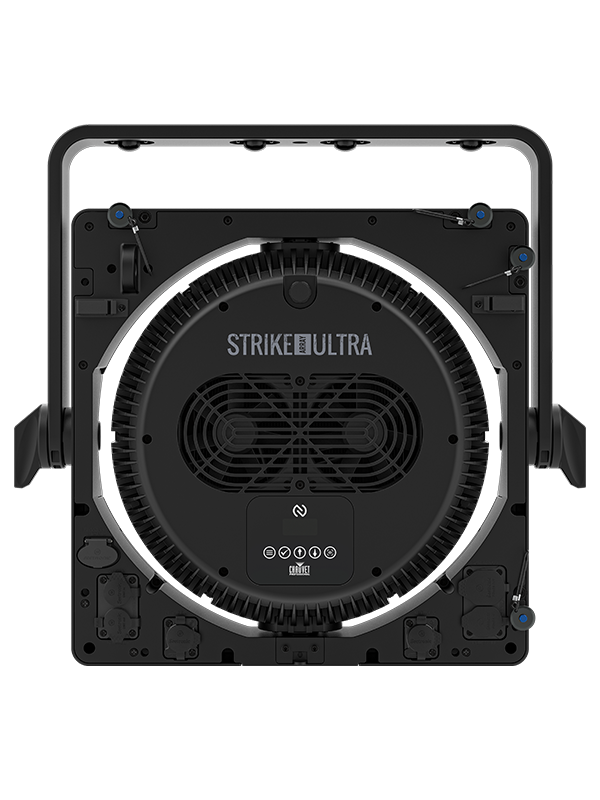

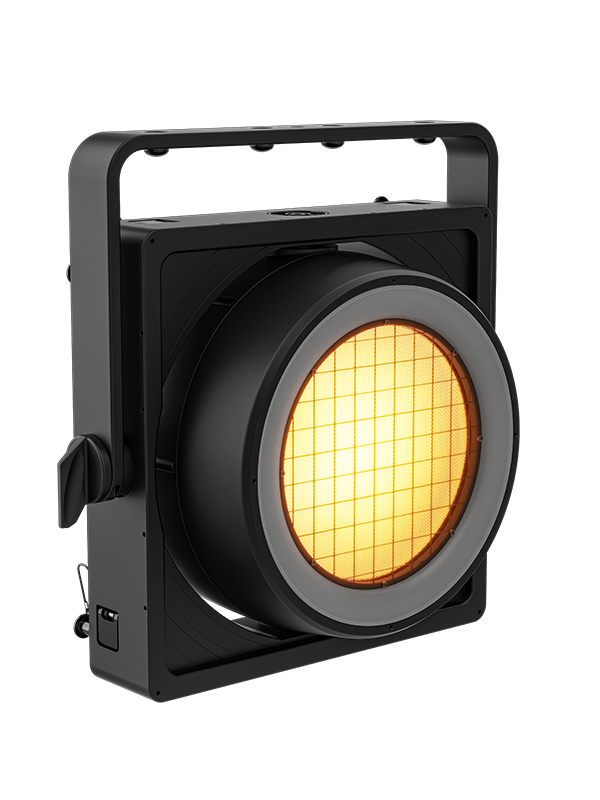

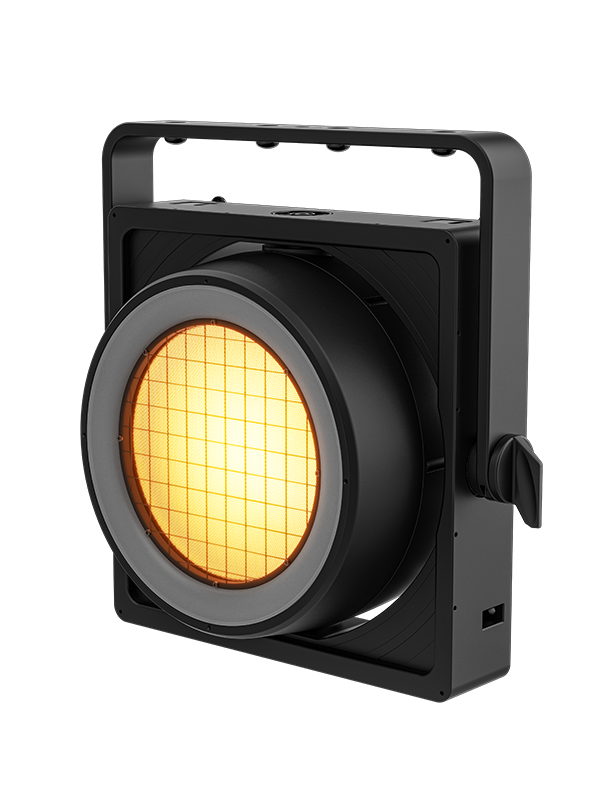

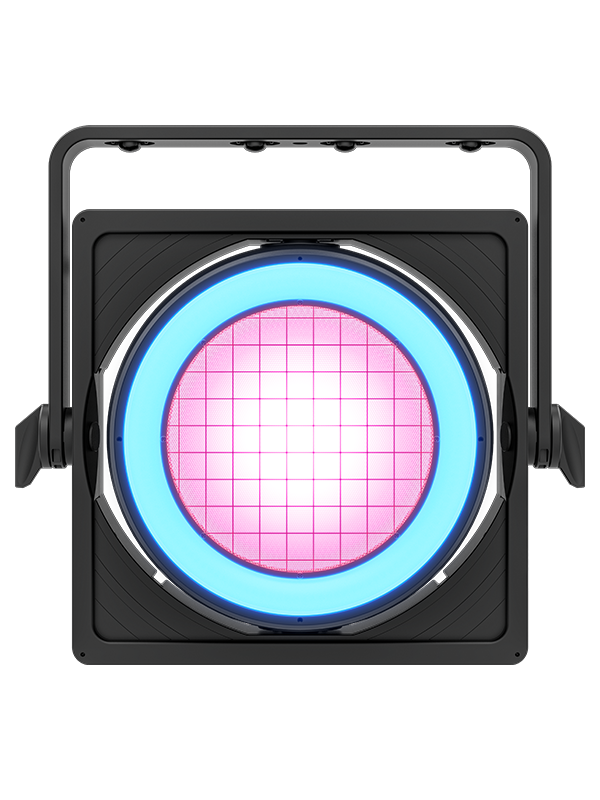

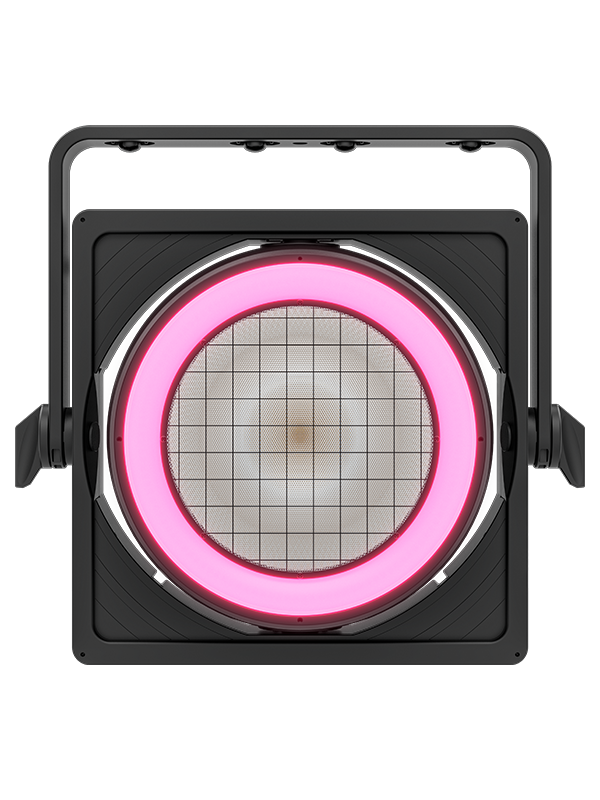

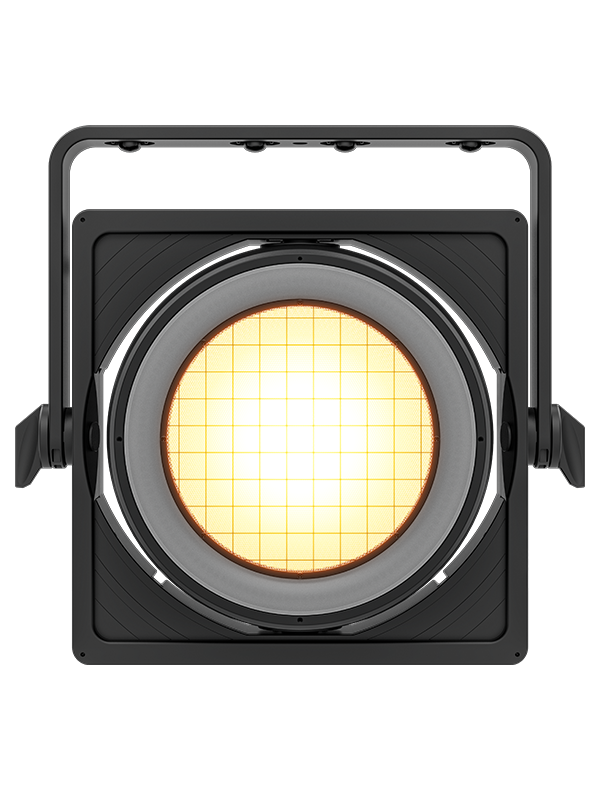

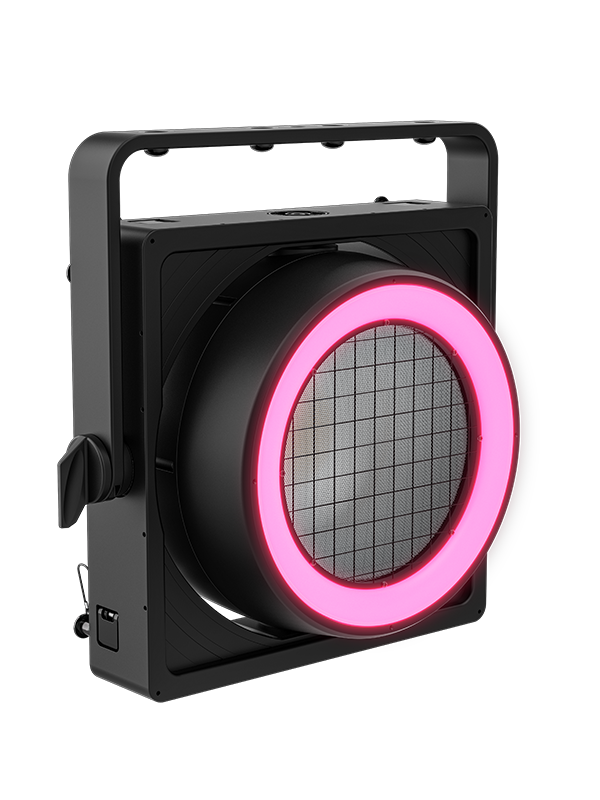

STRIKE Array Ultra

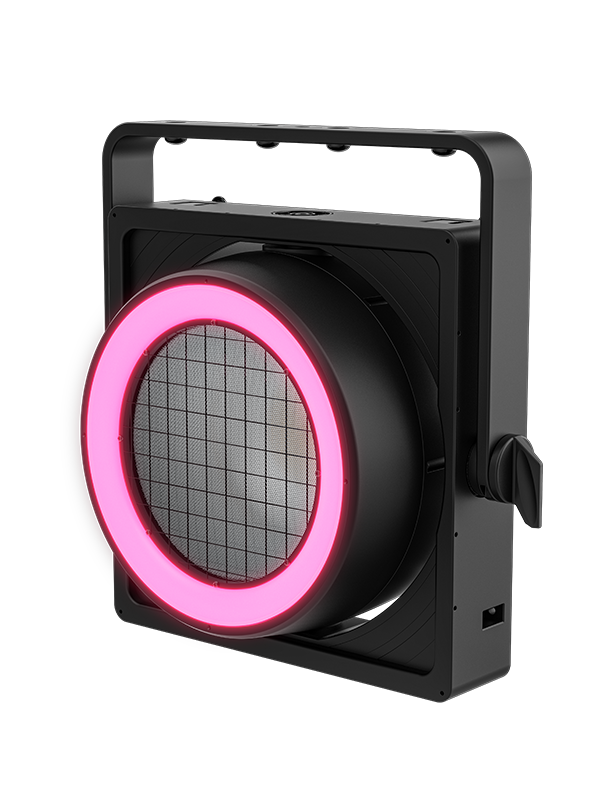

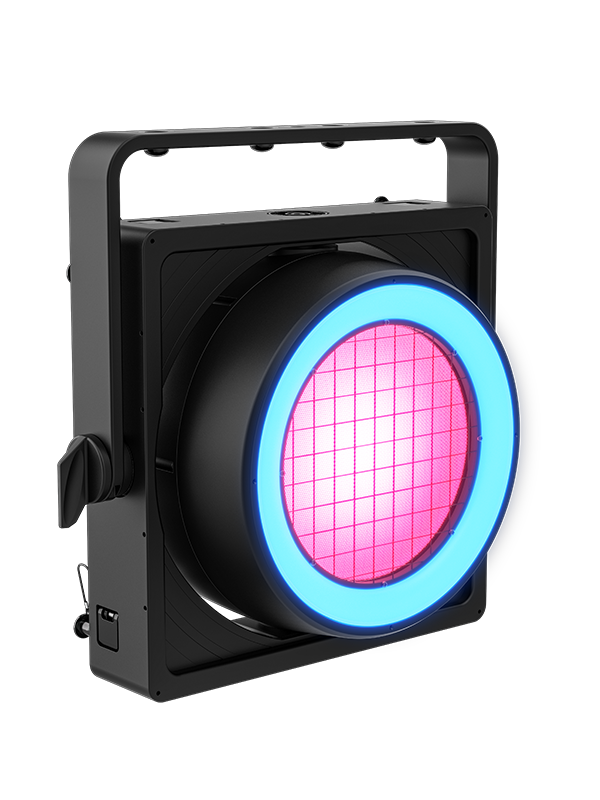

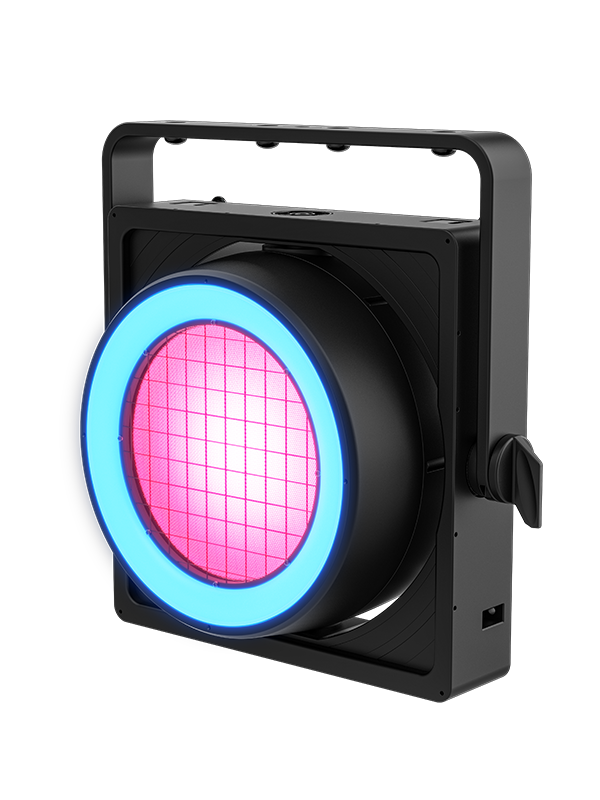

STRIKE Array Ultra is a next-generation IP65 audience blinder that pairs a powerful RGBA-WW engine with a distinctive RGB halo ring for bold, camera-ready looks. Its high-CRI calibrated whites and filter option deliver natural skin tones and rich color on camera, while a single motorized movement axis that functions as pan or tilt, along with broadcast-optimized dimming, transforms classic blinder punch into a flexible, dynamic effects platform. Built to integrate seamlessly with other STRIKE Array and STRIKE Bolt fixtures, it scales effortlessly from clubs to full festival and broadcast rigs.

BOOK A DEMO

Pre-order

*PRELIMINARY SPECIFICATIONS ONLY


Especificaciones

Óptica

  • Light Source: Pod 1 LEDs (RGBWA)
  • Light Source: Ring 120 LEDs (RGB)

Efectos dinámicos

  • Pan: +-25°
  • Pan Ranges: 50°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 4
  • Dim Curves: 4
  • Built-in Automated Programs: Yes

Construcción / Características físicas

  • Dimensions: 19.13 x 17.79 x 11.02 in (486 x 452 x 280 mm)
  • Weight: 39.6 lb (18 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum Profile, Die-casting magnesium
  • IP Rating: IP65

Conexiones

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin Seetronic IP65 XLR or Seetronic IP65 etherCON
  • Cable Length (power): 5 ft (1.5 m)
  • Software Update: USB-C

Control

  • Control Protocol: Art-Net, sACN, DMX, RDM
  • DMX Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
  • Art-Net Channels: 4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV
  • Modes/Personalities: 11 personalities (4, 6, 11, 14, 18, 19, 24, 27, 47, 90 or HSV)

Eléctrico

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V;
  • Power and Current: 1024 W, 8.54 A @ 120 V, 60 Hz
  • Power and Current: 995 W, 4.81 A @ 208 V, 60 Hz
  • Power and Current: 995 W, 4.34 A @ 230 V, 50 Hz

Certificaciones / Calificaciones

  • Compliance: CE, MET, FCC
  • MET Listing Number: [E113093-1110, E113093-1125]
  • US Safety: [UL 60950-1]
  • Canadian Safety: [CSA C22.2 No. 60950-1]
  • Thermal Dissipation @ 120V: 819 BTU per hour
  • Thermal Dissipation @ 208V: 819 BTU per hour
  • Thermal Dissipation @ 230V: 819 BTU per hour
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Accesorios incluidos

  • STRIKE Array Ultra
  • Seetronic Powerkon IP65
  • 2 Omega bracket with mounting hardware
  • Stealth Filter
