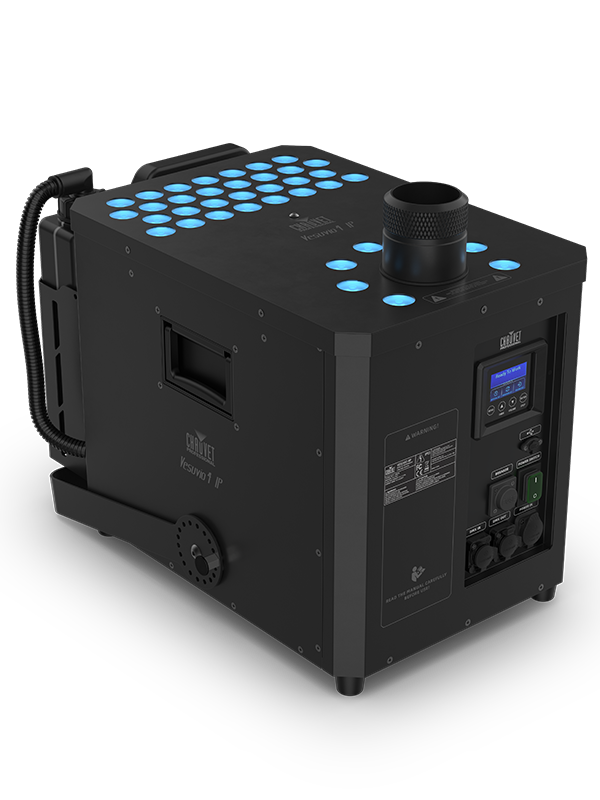

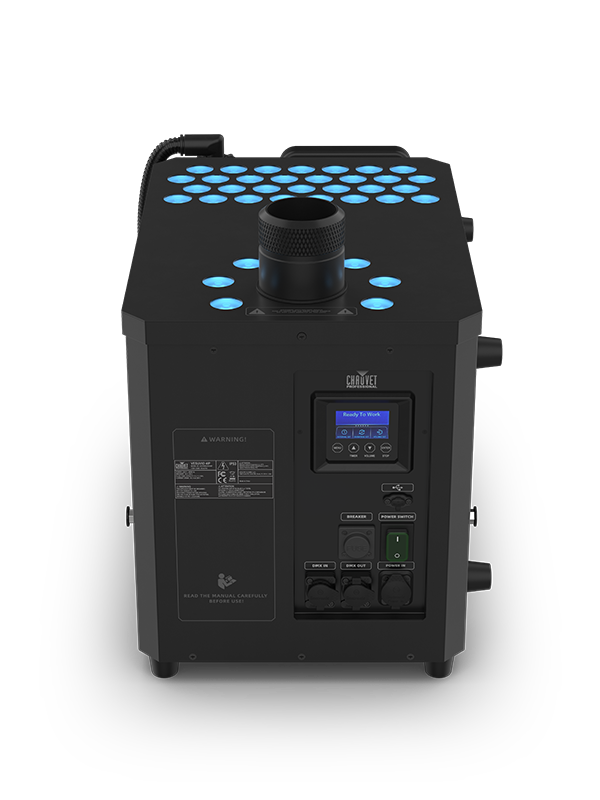

Vesuvio 4 IP
Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments. Operate via its full-color onboard display, included wireless RF handheld remote, or DMX. Remotely address and monitor via RDM. Vesuvio 4 IP ships in a durable custom road case built for easy transportation and the rigors of touring and rental. Use QDF Quick Dissipating Fluid for optimal performance. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets.
Pre-order
*PRELIMINARY SPECIFICATIONS ONLY
Lo destacado
Advanced Vertical Fogger – Creates powerful vertical fog bursts, delivering a CO₂-style effect without the need for gas or tanks.
Outdoor-Ready Design – Rated for temporary outdoor use, providing reliable operation in wet or damp environments.
High-Performance Output – Engineered for extreme throw distances of up to 50 ft (15 m), ensuring maximum visual impact.
Dual-Zone RGBA Illumination – Independently controlled LED zones enable creative color effects and dynamic visuals.
Rugged Flight Case Included – Ships in a durable touring case for easy transport and protection during rental or live event use.
Flexible Control Options – Operate via onboard full-color display, wireless RF handheld remote, or DMX integration.
Integrated Drainage System – Simplifies post-use maintenance with quick water evacuation and easy cleanup.
USB-C Port – Allows convenient software and firmware uploads for future updates.
QDF (Quick Dissipating Fluid) Required – Ensures optimal performance and clean atmospheric effects.
Especificaciones
Óptica
- Light Source: 37 LEDs (RGBA)
Efectos dinámicos
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Low Fluid Shutdown: No
- Standalone Color Mixing: No
- Built-in Automated Programs: Yes/No
Construcción / Características físicas
- Dimensions: 20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)
- Weight: 72.2 lb (32.75 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy, stainless steel
- Tank Capacity: 1.4 gal (5.3 l)
- Fluid Consumption: 22 ml/min
- IP Rating: IP53
- Heat-up Time: 13 min
- Maximum Runtime: 45-second bursts
Conexiones
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR
- Cable Length (power): 5 ft (1.5 m)
- Firmware upgrades: USB type-C
Control
- Control Protocol: [DMX, RDM, RF Remote]
- DMX Channels: 14
- Modes/Personalities: 1 personalities (14)
- On-Board Control: Yes
- Included Remote: yes
Eléctrico
- Input Voltage: 208 VAC, 60 Hz
- Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz
- Breaker Size: 16 A, 250 V
Accesorios incluidos
- Vesuvio 4 IP
- Seetronic Powerkon Cable
- 2x Omega Brackets
- Controllers: RF Remote
Accesorios necesarios

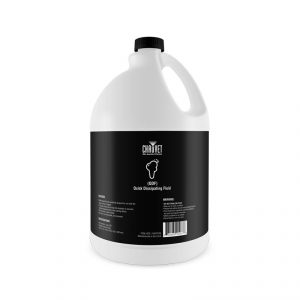

- Quick Dissipating Fluid (QDF)
- Compatible Mounting Options: [140DX OMEGA BRACKET, M12 BOLT]
Accesorios opcionales
Descargas
Vesuvio 4 IP - Quick Reference Guide Productos relacionados
Cloud 9X IP

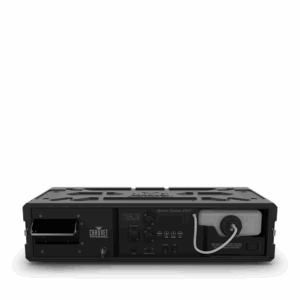

Amhaze Stadium 2X IP
